Waste Oil Recycling Plant
Waste Oil Recycling Plant Manufacturer
Erdol Rahmen Engineers Pvt Ltd is a leading manufacturer, supplier, exporter & turnkey project provider of Waste Oil Recycling Plant. Our Waste Oil Recycling Plant is designed to convert used and contaminated oil into high-quality reusable products. With advanced recycling technology and eco-friendly processes, we help industries reduce waste, recover valuable oil, and comply with environmental regulations.
A Waste Oil Recycling Plant processes used oils—such as engine oil, hydraulic oil, and industrial lubricants—removing impurities, sludge, and contaminants to produce refined base oil and fuel. Waste oil is fuel or furnace oil contaminated with water and slop oil is fuel oil / other hydrocarbon oil contaminated with water in large shipping vessels or large storage tanks. Typically, this water cannot be separated using a centrifugal separator as it is highly emulsified. It can only be separated using molecular distillation, a process known as the dehydration of waste oil.
Recycling the waste oil is done by following procedure:
- Pretreatment: screening process is conducted to remove particles and free water is separated from waste Oil.
- Dehydration: moisture content is removed by using evaporator under high vacuum and controlled temperature.

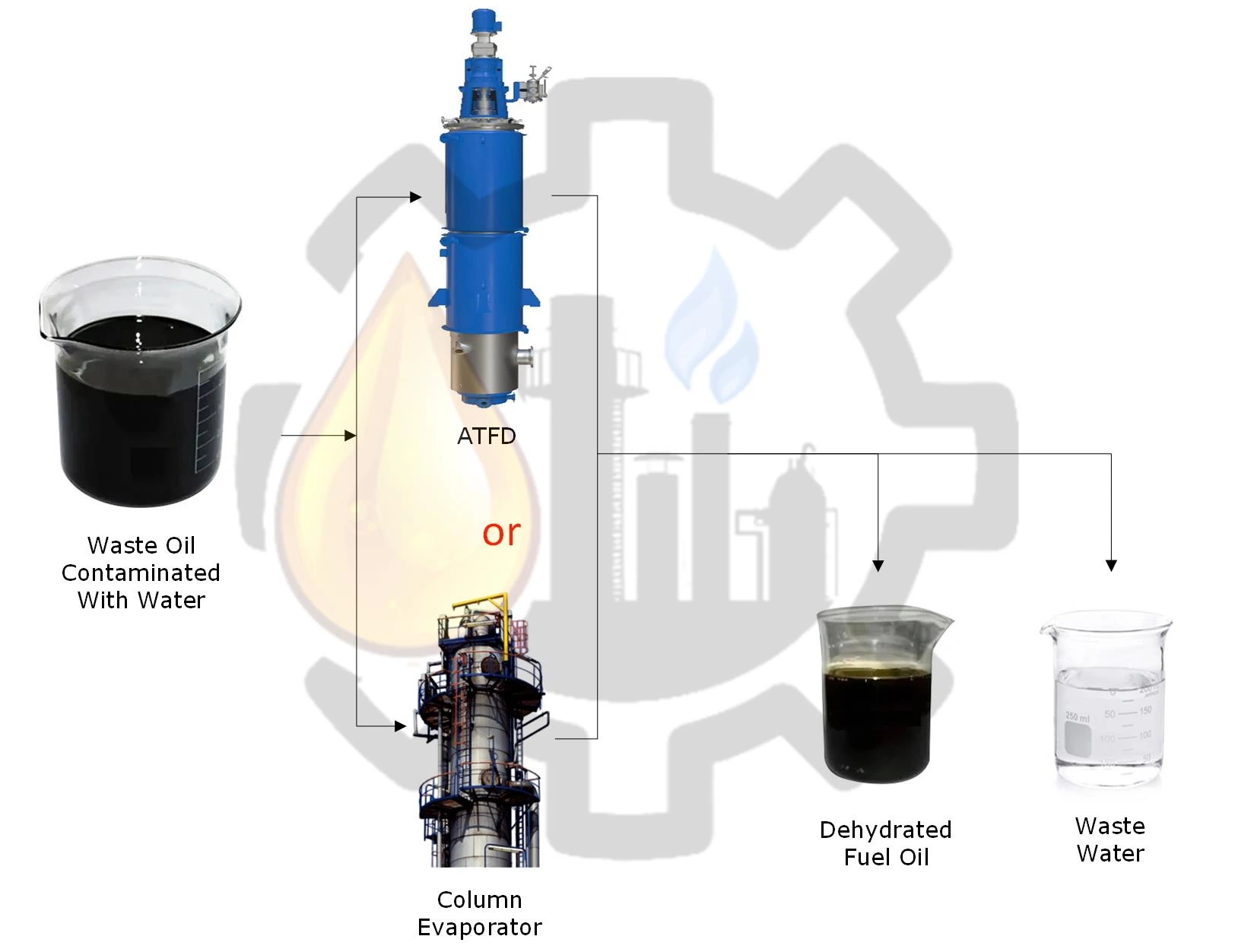

Process Flow Diagram for Waste Oil / Slop Oil Recycling
Available Technologies for Dehydration
ATFD (Agitated Thin Film Dryer)
- ATFD works by spreading the material as a thin film on a heated surface while being agitated by a rotor with blades, which enhances heat transfer and ensures uniform drying. ATFDs are compact and energy-efficient.
- Fully Automated (SCADA + PLC) & Continuous Process.
Available Capacities: 50 TPD, 100 TPD, 200 TPD.
Column Evaporator
- Column-type evaporators are more preferable when the production capacity is less than 50 TPD due to their low initial cost.
- Multiple cuts can be separated by one evaporator.
- Batchwise process & Semi Continuous Process using PLC.
Available Capacities: 10 TPD, 20 TPD, 50 TPD.
